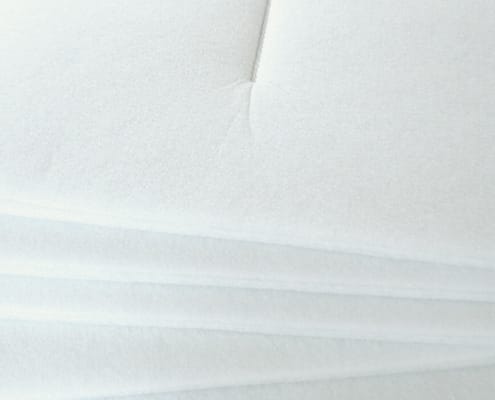

Polyester Synthetic Fiber Filter Media
Product Introduction
Polyester synthetic fiber filter media is manufactured by matching various specifications of synthetic fibers using different traditional techniques such as needle punching, adhesion with adhesive, thermo-adhesion methods etc.
The low initial resistance of the product leads to high efficiency, reducing energy usage and lowering both financial and environmental costs. The product also has high water resistance and is flame retardant, making it versatile and useful in many fields.

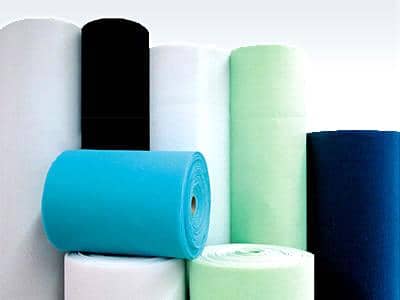

An environmentally friendly product, it can be widely used in bag filters, plate filters, spiral-wound filters and others. Handanhy can provide these media with different filter requirements as per customers’ request, with the ability to produce various types and colors of synthetic fiber media. For customers’ full satisfaction and to stand upto their requirements, we can supply sonic sewed filter bags.
Product Performance
-
The polyester synthetic fiber filter media is known to be eco-friendly, and can be discarded without causing damage to the environment.
-
It offers increased filter material density.
- Also, it has got Less initial resistance, high efficiency, large dust capacity, and water resistance.
- The product is flame retardant and the grade of fire protection is U12.
Product Technical Specification
| Type | Basic Weight g/m² | Thickness mm | Test Vol m/s | Resistance Pa | Efficiency (≥1µm) % | Efficiency (≥2µm) % | Efficiency (≥5µm) % | App |
|---|---|---|---|---|---|---|---|---|
| HY-J-10 | 120 | 3 ± 1 | 1.5 | ≤ 20 | ≥ 15 | ≥ 35 | ≥ 45 | G2 Panel Filter |
| HY-J-11 | 200 | 4 ± 1 | 1 | ≤ 30 | ≥ 18 | ≥ 60 | ≥ 75 | G3 Panel Filter |
| HY-J-13 | 250 | 5 ± 1 | 0.5 | ≤ 40 | ≥ 35 | ≥ 45 | ≥ 80 | G3 Bag Filter |
| HY-J-14 | 380 | 8 ± 1 | 0.5 | ≤ 45 | ≥ 40 | ≥ 50 | ≥ 85 | G3 Bag Filter |
| HY-J-40 | 400 | 3 ± 0.5 | 1 | ≤ 130 | ≥ 30 | ≥ 70 | ≥ 85 | Safe Filter Core |
| HY-J-22I | 260 | 5 ± 1 | 1 | ≤ 35 | ≥ 25 | ≥ 25 | ≥ 60 | G4 Bag Filter |
| HY-J-22II | 380 | 8 ± 1 | 1 | ≤ 55 | ≥ 45 | ≥ 85 | ≥ 90 | F5 Bag Filter |
| HY-J-26 | 570 | 3 ± 0.5 | 1.7 | ≤ 200 | ≥ 70 | ≥ 90 | ≥ 95 | Oil Filtration, Dust Collection |
| Type | Basic Weight g/m² | Thickness mm | Test Vol m/s | Resistance Pa | Efficiency (≥1µm) % | Efficiency (≥2µm) % | Efficiency (≥5µm) % | App |
|---|---|---|---|---|---|---|---|---|
| HY-R-12 | 100 | 2 ± 0.5 | 1.5 | ≤ 15 | ≥ 15 | ≥ 35 | ≥ 45 | G3 Panel Filter |
| HY-R-15 | 280 | 12 ± 1 | 1 | ≤ 35 | ≥ 25 | ≥ 50 | ≥ 65 | G3 Panel Filter, Roll Filter |
| HY-R-16 | 300 | 20 ± 1 | 1 | ≤ 50 | ≥ 35 | ≥ 70 | ≥ 80 | G4 Panel Filter, Roll Filter |
| HY-R-17 | 150 | 8 ± 2 | 1.5 | ≤ 25 | ≥ 15 | ≥ 30 | ≥ 25 | G2 Panel Filter |
| HY-R-18 | 260 | 12 ± 2 | 1.5 | ≤ 35 | ≥ 18 | ≥ 45 | ≥ 65 | G3 Panel Filter, Roll Filter |
| HY-R-19 | 300 | 20 ± 2 | 1.2 | ≤ 65 | ≥ 35 | ≥ 65 | ≥ 80 | G4 Roll Filter |
| HY-R-20 | 280 | 8 ± 1 | 1 | ≤ 55 | ≥ 45 | ≥ 70 | ≥ 90 | F5 Bag Filter |
| HY-R-23 | 210 | 5 ± 1 | 1 | ≤ 30 | ≥ 25 | ≥ 50 | ≥ 65 | G3 Panel Filter, Roll Filter |
| HY-R-24 | 230 | 7 ± 1 | 1 | ≤ 40 | ≥ 30 | ≥ 50 | ≥ 70 | G3 Bag Filter |
